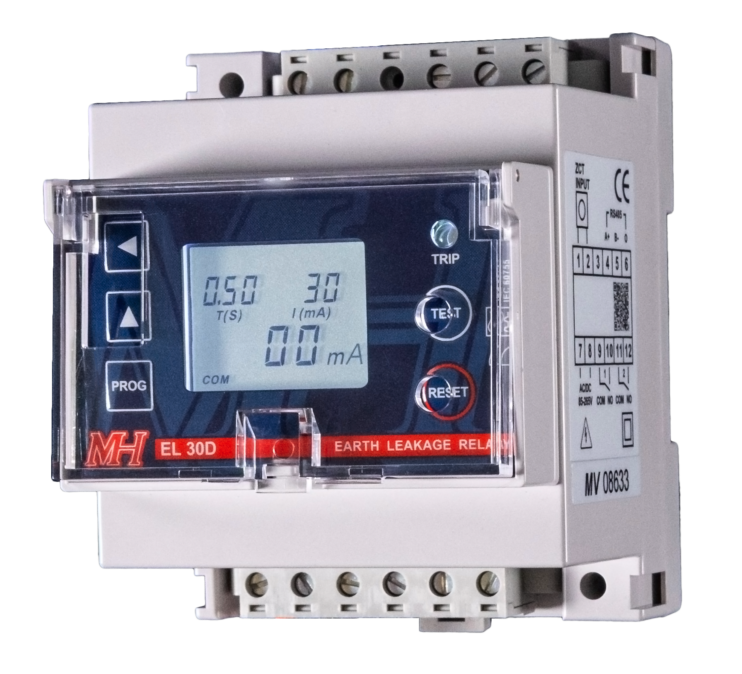

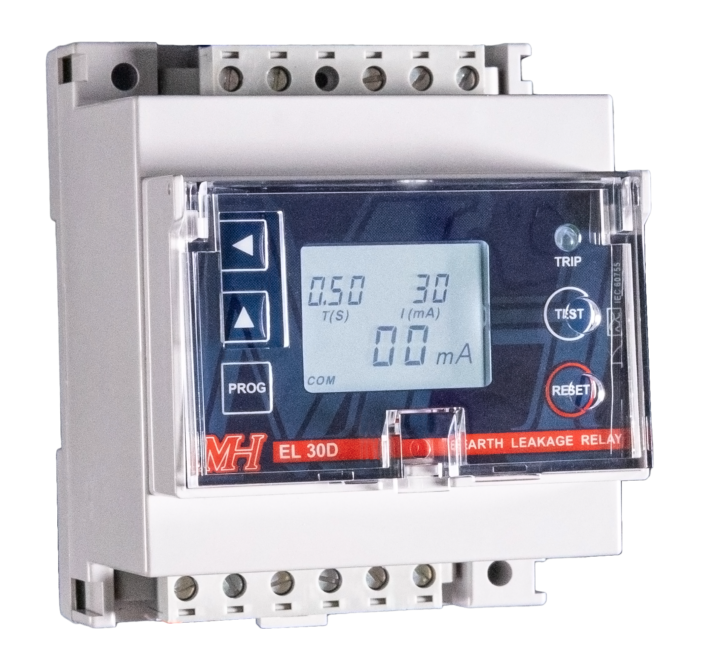

Digital Earth Leakage Relay – EL03D, EL30D

  • Pre-Alarm

    Notification

  • Mounting

    Flush

  • Self-Check

    ZCT Connectivity

  • Fault & Operation

    Record

Built for Safety

EL D is a digital relay specially designed in 2021 to protect your facilities from sudden blackout. It gives you an early notification before an Earth Leakage event could occurred.

This advanced design meets IEC 60755 Type A & AC operation to deduce the leakage current level accurately in the network.

Pre-Alarm

Pre-alarm is an early warning activated before the leakage current reaches the threshold for tripping.

Tripping Events Recording

4 tripping events include the types, magnitude of the fault with data and time stamping. It reduces the time needed on fault tracing.

High Contrast LCD Display

Viewing all settings, live value, tripping event with date & time stamping in one screen. User friendly and easy to use.



Rated IP31 (front) and IP20 (rear)

Protection against foreign objects and water with IP31 (front) and IP20 (rear).

Communications

Built-in Modbus-RTU to communicate with SCADA, Building Management System (BMS) and Energy Management Information System (EMiS).

Self-check System

To detect fault and/or wrong connection in Zero Sequence Current Transformer (CTZ).

Ability to toggle between mA and %

To display live leakage current in mA or %.

Tested in accordance with IEC standards

Product safety, EMC compatibility, environmental, vibration, shock and bump tests.

  • EMC

    Compatibility

  • Environmental

    Test

  • Product

    Safety

  • Vibration, Shock, Bump

    Test

Technical Data
  • Power Supply

    AC/DC 85-265V (other voltage available)

  • Self Check

    ZCT connection

  • Residual Current Operating Performance

    Type A & Type AC

  • Leakage Current Setting

    EL03D 0.03 – 3.00 A in a step of 0.01A
    EL30D 0.3 – 30.0 A in a step of 0.1 A

  • Event Records

    4 tripping events data/time stamping, trip current A and %

  • Product Safety Requirements

    IEC 60255-27

  • Pre-alarm Setting

    5 – 100% (1% per step)

  • Communication

    Modbus RS485 built-in

  • Electromagnetic Compatibility

    IEC 60255-26

  • Delay Time Setting

    0.01 – 0.50 sec in step of 0.01 sec
    0.01 – 5.00 sec upon request

  • Output Contacts

    1x NO for Relay Trip
    1x NO for Relay Trip / Pre-alarm

  • Cyclic Temperature with Humidity

    IEC 60255-1

  • Power Consumption

    < 3.5 VA

  • Protection Class

    IP 54

  • Vibration, Shock and Bump

    IEC 60255-21-1
    IEC 60255-21-2

  • Indication

    Live leakage current value in A or %, delay time, Communication Status, ZCT Status etc

  • Unit Dimension

    W75mm x H90mm x D74mm

  • Safety

    CE Marking
